Summary0026139: Move MantisGraph pages to their own tab
Description

Until now, the various graphs generated by MantisGraph core plugin were available via the Summary page's submenu.

The plugin was adding a "Synthesis" menu item for the main summary page, and created additional items for its own. As a result, the Main menu contained only a single Summary item, wasting screen real-estate.

Since we have EVENT_MENU_SUMMARY which allows adding items to the main summary page menu, it would be better to regroup all MantisGraph pages under their own Graphs tab, next to the Summary tab.

Additional Information

See before (0026139:0062799) & after (0026139:0062800) screenshots in notes below.

NOTE: the updated plugin signals a new EVENT_MANTISGRAPH_SUBMENU event, allowing 3rd-party plugins to add additional graphs.

TagsNo tags attached.

Relationships

related to 0026445 closedatrol Summary have two synthesis tabs
related to 0033520 closeddregad Cannot add option to MantisGraph

Activities

dregad

dregad

2019-09-13 18:34

developer   ~0062799

Last edited: 2019-09-13 18:34

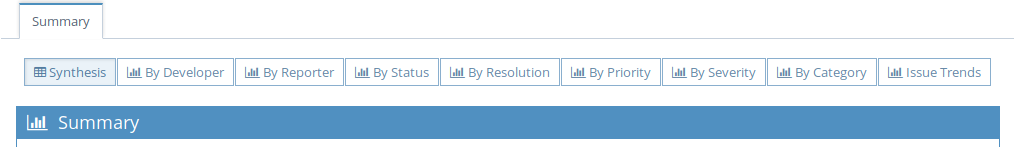

Before

dregad

dregad

2019-09-13 18:34

developer   ~0062800

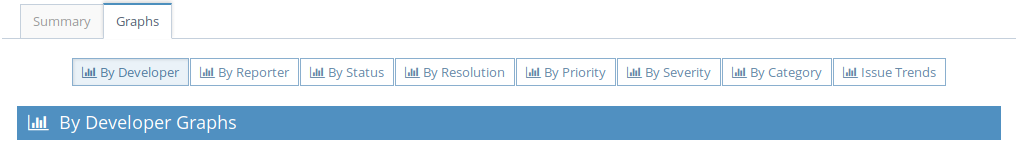

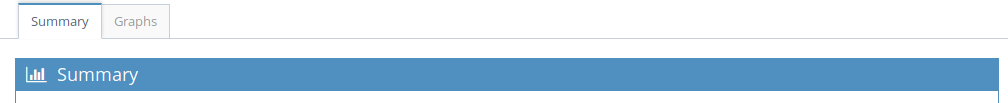

After

dregad

dregad

2019-09-13 18:38

developer   ~0062801

PR https://github.com/mantisbt/mantisbt/pull/1564
dregad

dregad

2019-09-13 18:51

developer   ~0062802

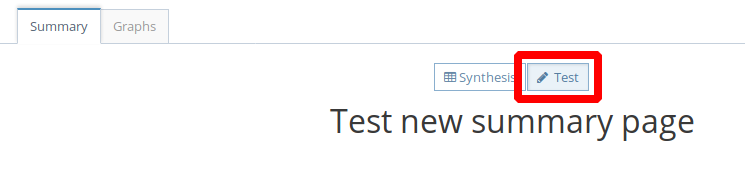

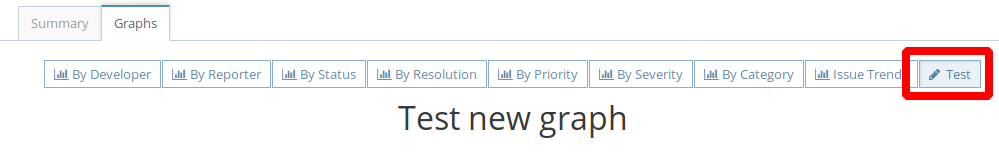

Attached is a basic plugin I used to test the UI when new pages are added to

  • the Summary submenu (hooking EVENT_SUBMENU_SUMMARY)
  • the Graphs submenu (hooking new MantisGraph event EVENT_MANTISGRAPH_SUBMENU)
TestSummarySubmenu.tar.gz (1,149 bytes)

Related Changesets

MantisBT: master 986363b1

2019-10-09 00:04

dregad


Details Diff		 Move MantisGraph pages to their own tab

Until now, graphs generated by MantisGraph core plugin were available
via the Summary page's submenu. The plugin was adding a "Synthesis" menu
item for the main summary page, and created additional ones for its own
pages. As a result, the Main menu contained only a single item, wasting
screen real-estate.

We use of the EVENT_MENU_SUMMARY event to regroup all MantisGraph pages
under their own "Graphs" tab, next to the original "Summary" tab.

Fixes 0026139
Pull Request https://github.com/mantisbt/mantisbt/pull/1564		 Affected Issues
0026139
