Summary0025523: MantisGraph: improve handling of colors in Pie charts
Description

Currently, the color for Pie Chart slices are defined based on $g_status_colors config.

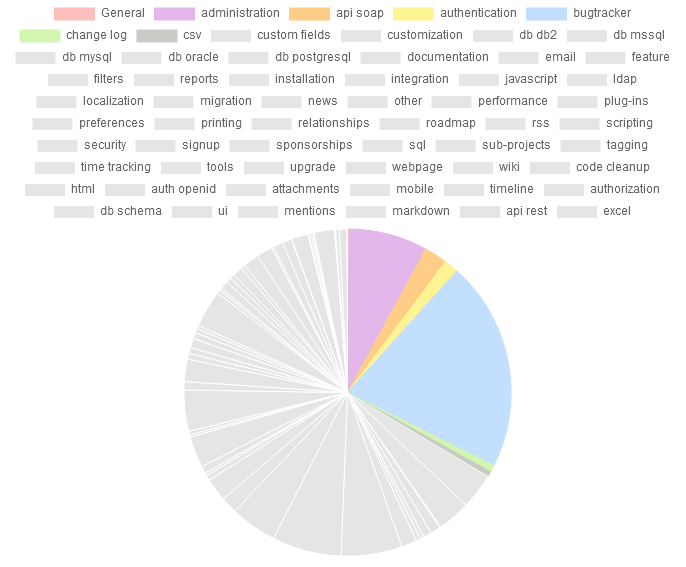

This potentially has fewer colors defined than the number of slices on the chart, resulting in a pie where only the first few slices are colored, and the remaining ones are shown in a default gray, as shown in attached screenshot by_category_pie_chart.png.

Using $g_status_colors only makes sense for By Status charts, we should use a wider color palette for other pie charts.

Additional Information

Follows discussion in https://github.com/mantisbt/mantisbt/pull/1467#issuecomment-467175008

TagsNo tags attached.

Relationships

related to 0025522 closeddregad MantisGraph: limit number of slices in By Category pie chart
related to 0025524 closeddregad MantisGraph: improve display of By Category Bar chart
related to 0025951 resolveddregad MantisGraph: update Chart.js library to v2.8.0

Activities

dregad

dregad

2019-02-26 11:57

developer

cproensa

cproensa

2019-02-26 12:46

developer   ~0061577

Using $g_status_colors only makes sense for By Status charts,

Note that even in Status chart, the colors applied don't match the status colors. This happens when not all status are represented in the graph. Easily reproducible with a filtered summary.

dregad

dregad

2019-02-27 03:33

developer   ~0061586

Note that even in Status chart, the colors applied don't match the status colors. This happens when not all status are represented in the graph. Easily reproducible with a filtered summary.

Very good point, I never realized that as in my tests I always had a data set covering all statuses. Shouldn't be too difficult to adjust the color list to match the dataset though.

dregad

dregad

2019-02-27 07:28

developer   ~0061589

PR https://github.com/mantisbt/mantisbt/pull/1472

dregad

dregad

2019-02-27 07:29

developer   ~0061592

Shouldn't be too difficult to adjust the color list to match the dataset though.

@cproensa This should be fixed in above-mentioned PR.

Related Changesets

MantisBT: master 4e3aca87

2019-02-26 10:50:45

dregad

Details Diff
Add chartjs-plugin-colorschemes

This Chart.js plugins defines a number of preset color schemes
https://github.com/nagix/chartjs-plugin-colorschemes

Requires Chart.js 2.5.0 or later.

Issue 0025523
Affected Issues
0025523
mod - library/README.md Diff File
mod - plugins/MantisGraph/MantisGraph.php Diff File
add - plugins/MantisGraph/files/chartjs-plugin-colorschemes.min.js Diff File
