View Issue Details

IDProjectCategoryView StatusLast Update
0019501mantisbtroadmappublic2015-03-16 16:12
ReporterdregadAssigned Todregad
PrioritylowSeverityminorReproducibilityalways
Status closedResolutionfixed
Product Version1.3.0-beta.1
Target Version1.3.0-beta.2Fixed in Version1.3.0-beta.2

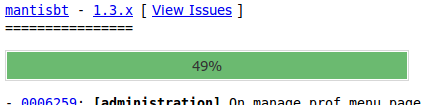

Summary0019501: The progress bar in Roadmap is broken
Description

Color always fills 100% of the bar, regardless of actual progress percentage

TagsNo tags attached.

Relationships

related to 0017491 closedatrol Avatars are not showing on Firefox
related to 0019508 closeddregad Regression when using MantisBT in a browser where JavaScript is disabled

Activities

dregad

dregad

2015-03-14 15:40

developer

atrol

atrol

2015-03-14 17:43

developer   ~0049232

This is caused by CSP blocking inline styles.

As a quick (maybe even final) fix we can change header to

header( 'Content-Security-Policy: default-src \'self\'; style-src \'self\' \'unsafe-inline\'' . $t_avatar_img_allow . '; frame-ancestors \'none\'' );

The curious thing is that it works in FF and Safari, but Safari shows the following new error in console after the change
[Error] Unrecognized Content-Security-Policy directive 'frame-ancestors'.
after the change

dregad

dregad

2015-03-15 13:14

developer   ~0049235

Hi Roland,

Thanks for your note.

I know it's CSP... In fact I initially did just what you proposed below, but for security reasons I'd rather avoid adding style-src 'self' as a permanent solution, although I suppose it could be OK as temporary workaround.

I started playing around with replacing the progress bar by a jQuery widget, which I think would be more elegant.

atrol

atrol

2015-03-15 13:31

developer   ~0049236

Last edited: 2015-03-15 13:34

View 2 revisions

I started playing around with replacing the progress bar by a jQuery widget
We shouldn't start using JavaScript for standard functionality, at least not in 1.3.x.

I'd rather avoid adding style-src 'self' as a permanent solution
I thought that 'unsafe-inline' fixed it.

dregad

dregad

2015-03-15 18:18

developer   ~0049237

Last edited: 2015-03-15 18:37

View 2 revisions

I thought that 'unsafe-inline' fixed it.

Sorry, that's what I meant.

We shouldn't start using JavaScript for standard functionality, at least not in 1.3.x.

Why not ? I mean, we are bundling jQuery/jQueryUI... what's the point if we then refrain from using it ?

EDIT: As a side note, I can't think of any way to achieve the colored progress bar without using inline style or javascript. If you have any ideas let me know.

dregad

dregad

2015-03-15 19:00

developer   ~0049238

I thought about this some more, and I think that it is an acceptable risk to selectively enable inline styles for the roadmap page only, as a temporary workaround for this issue. We can revisit this later on.

I'm still interested in hearing your opinion on use of jQuery though, but maybe the mailing list is a better channel for that discussion.

atrol

atrol

2015-03-16 03:50

developer   ~0049240

I can't think of any way to achieve the colored progress bar without using inline style or javascript. If you have any ideas let me know.

Doing it the same way we are handling status colors should work (css/status_config.php)

dregad

dregad

2015-03-16 05:40

developer   ~0049242

The problem with this approach, is that while the CSS is dynamically generated, it is still static from the perspective of the page using it, i.e. the classes are defined once when the DCSS is included. In the case of the progress bars, we are setting their width at run time.

So, following this approach, the php script would have to generate 101 distinct CSS classes (one per percentage point), e.g. width0, width1, width2, etc until width100, to define all possible widths. That's easy enough, but not very efficient.

atrol

atrol

2015-03-16 16:12

developer   ~0049244

You are right.
I forgot for a moment that there is more than one product with more than one version.
101 classes are not needed, the distinct % values of all versions would be enough.
But we would have to calculate all precent values before we start building the page.

the php script would have to generate 101 distinct CSS classes
In this case we could also use a static CSS with 101 classes.
At least this would be a bit more efficient than generating it on the fly.

TBH, I like none of both approaches.

Another approach could be to use HTML5 canvas or SVG.
Cerainly not worth to think about in 1.3.x.

Why not ? I mean, we are bundling jQuery/jQueryUI
JavaScript has not been used for any standard functionality until now.
I think that having a wrong roadmap percentage display is a curious side effect of disabled JavaScript and not acceptable.

I have personally no problem to require JavaScript to run MantisBT.
I think we had this discussion a while ago and agreed to enforce it in 2.0.

Maybe we have even to enforce it in 1.3.x as there is at least one regression when disabling JavaScript, see 0019508.

Related Changesets

MantisBT: master 62bfce99

2015-03-15 18:53:30

dregad

Details Diff
CSP: enable inline style for roadmap_page.php

This is a quick&dirty workaround that resolves the issue of broken
progress bars in the Roadmap, where color always fills 100% of the bar,
regardless of the actual progress percentage.

Fixes 0019501
mod - core/http_api.php Diff File

Issue History

Date Modified Username Field Change
2015-03-14 15:40 dregad New Issue
2015-03-14 15:40 dregad File Added: roadmap_progress_bar.png
2015-03-14 15:40 dregad Status new => confirmed
2015-03-14 15:41 dregad Target Version => 1.3.0-beta.2
2015-03-14 17:43 atrol Note Added: 0049232
2015-03-15 07:01 atrol Relationship added related to 0017491
2015-03-15 13:14 dregad Note Added: 0049235
2015-03-15 13:31 atrol Note Added: 0049236
2015-03-15 13:34 atrol Note Edited: 0049236 View Revisions
2015-03-15 18:18 dregad Note Added: 0049237
2015-03-15 18:37 dregad Note Edited: 0049237 View Revisions
2015-03-15 19:00 dregad Note Added: 0049238
2015-03-15 19:00 dregad Assigned To => dregad
2015-03-15 19:00 dregad Status confirmed => assigned
2015-03-15 19:00 dregad Changeset attached => MantisBT master 62bfce99
2015-03-15 19:00 dregad Status assigned => resolved
2015-03-15 19:00 dregad Resolution open => fixed
2015-03-15 19:00 dregad Fixed in Version => 1.3.0-beta.2
2015-03-15 19:58 dregad Status resolved => closed
2015-03-16 03:50 atrol Note Added: 0049240
2015-03-16 05:40 dregad Note Added: 0049242
2015-03-16 16:07 atrol Relationship added related to 0019508
2015-03-16 16:12 atrol Note Added: 0049244
